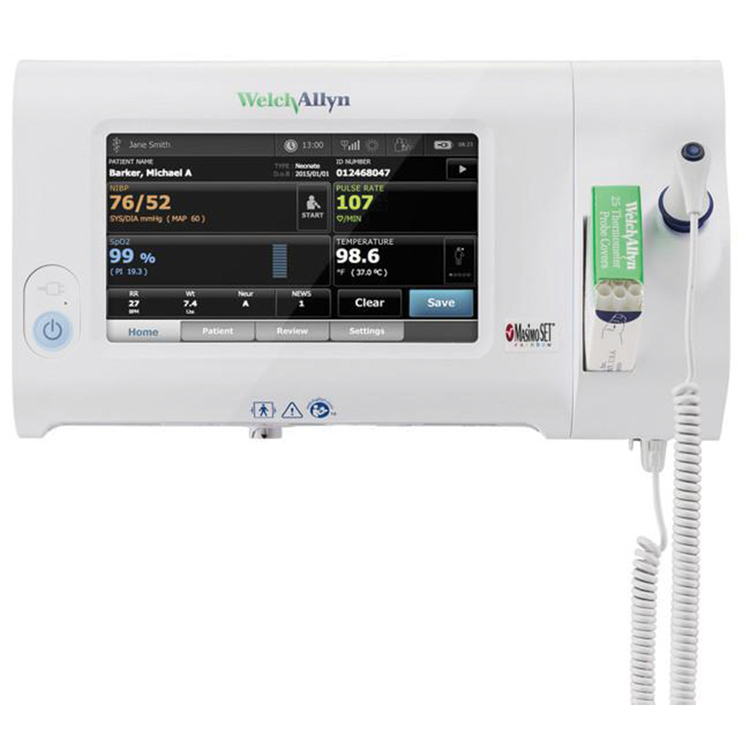

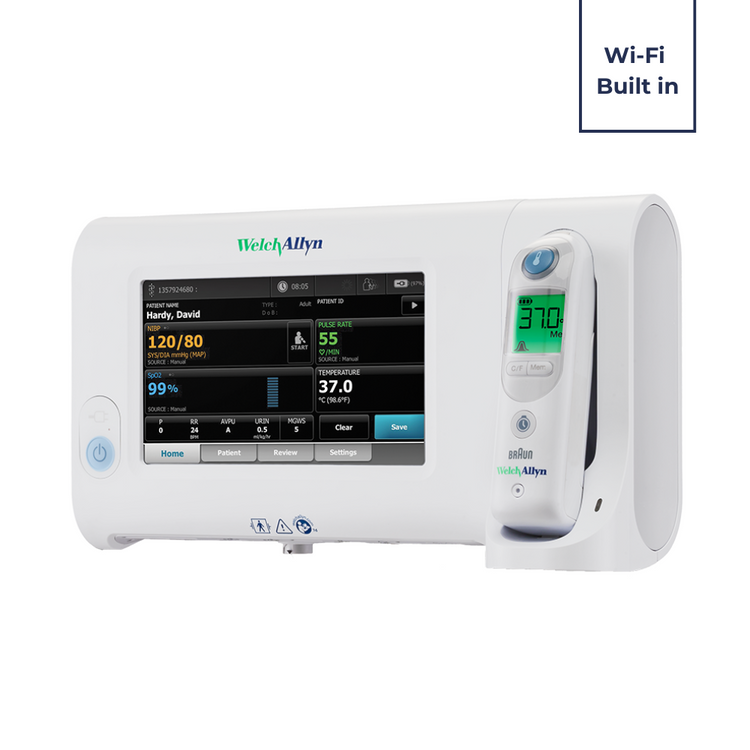

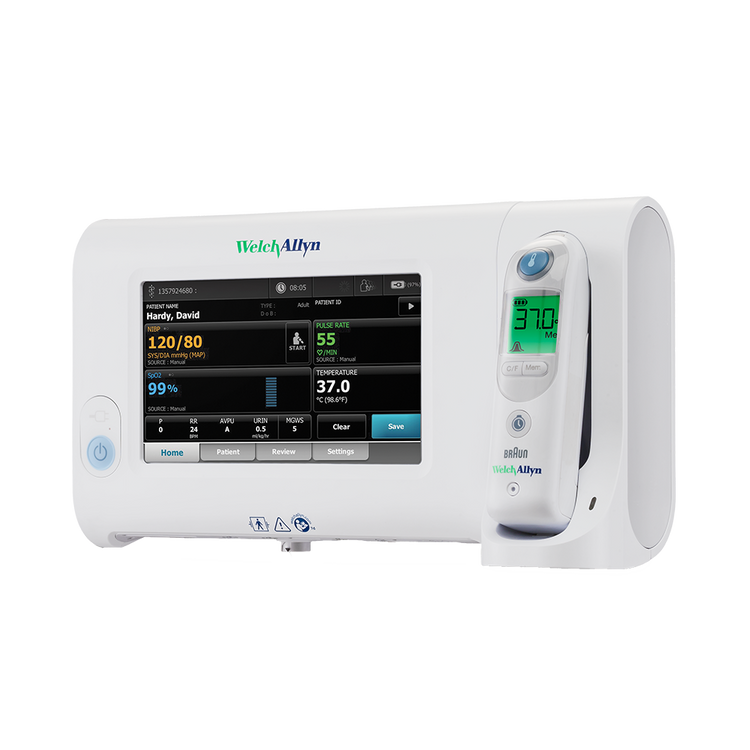

Welch Allyn Connex Spot Monitor Wi-Fi Ready 74 Series

WEL74CE6

Each

Regular price
$4,856.38
Regular price
$4,856.38
Sale price
$4,856.38
Parameter Options

Connex Spot Monitor: Advanced Vital Signs Monitoring for Enhanced Patient Care.

The Connex Spot Monitor features an intuitive, vibrant touchscreen display that delivers accurate measurements, including blood pressure averaging, custom scoring, and options for spot-check or interval monitoring. With secure EMR connectivity, vitals data can be seamlessly transmitted directly from the bedside to a patient’s chart—eliminating manual entry, reducing errors, and allowing you to focus on patient care.

Tailor the device to meet your facility’s needs with its upgradeable design and customizable configurations. Detect early signs of patient deterioration with Early Warning Scores, utilize blood pressure averaging for reliable hypertension detection, and select from a range of mounting and mobility options. Pair it with industry-leading thermometers, pulse oximeters, and your preferred connectivity method for a truly adaptable monitoring solution

Feature

  • Simple color touchscreen interface
  • Spot check and timed intervals monitoring
  • For use on adult, pediatric and neonatal patients
  • Fast, comfortable blood pressure with SureBP® technology
  • Oral/axillary or tympanic thermometry options to meet patient and care setting requirements
  • Option of Masimo®, Nellcor® or Nonin® SpO2
  • Optional clinician sign-on screen restricts access to protected health information
  • Single sign-on options available for quick, secure clinician login
  • Up to 20 custom modifiers for more complete patient documentation
  • Customizable Early Warning Scoring (e.g., MEWS, PEWS) to enable clinical decision support at the bedside DoD RMF Spot Monitor Approved
  • Wireless EMR connectivity

Specification

  • This device will not function without a compatible stand
  • The 7100 Series monitors needs to be mounted on a compatible wall mount, mobile stand or desk mount.
  • Dimensions (H*W*D): 166cm * 30cm * 11cm
  • Weight: 1.7kg (including battery)
  • Power Source: Mains power with rechargeable battery provided through mounting options
  • Average Battery Life: Min 5 hours (continuous monitoring. Max 8 hours (10min interval cycles)
  • BP Range (Adult and Paediatric): 30 to 260 mmHg (Sys) and 20 to 220 mmHg (Dia).
  • BP Range (Neonatal): 20 to 120 mmHg (Sys) and 10 to 110 mmHg (Dia).
  • Pulse Range From BP Module (Adult and Paediatric): 40 to 200 bpm
  • Pulse Range From BP Module (Neonate): 35 to 220 bpm
  • Pulse Calibration Accuracy: ± 5%
  • SPO2 Range: 70% to 100%
  • Pulse Range From SPO2 Module: 18 to 300 bpm
  • Temperature Range: 20°C 43°C
  • Temperature Calibration Accuracy: ± 0.2°C
  • Supplied with: SPO2 adult sensor, PSU & Power cable,
  • Adult 11 Cuff, separate BP Hose (connects cuff to machine), Thermometer (Single pack of 20 probe covers)
