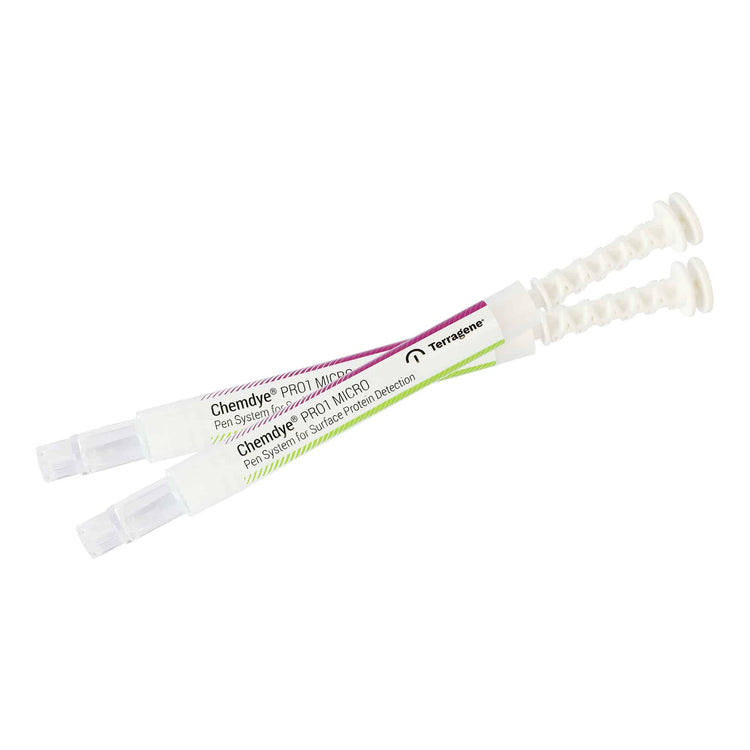

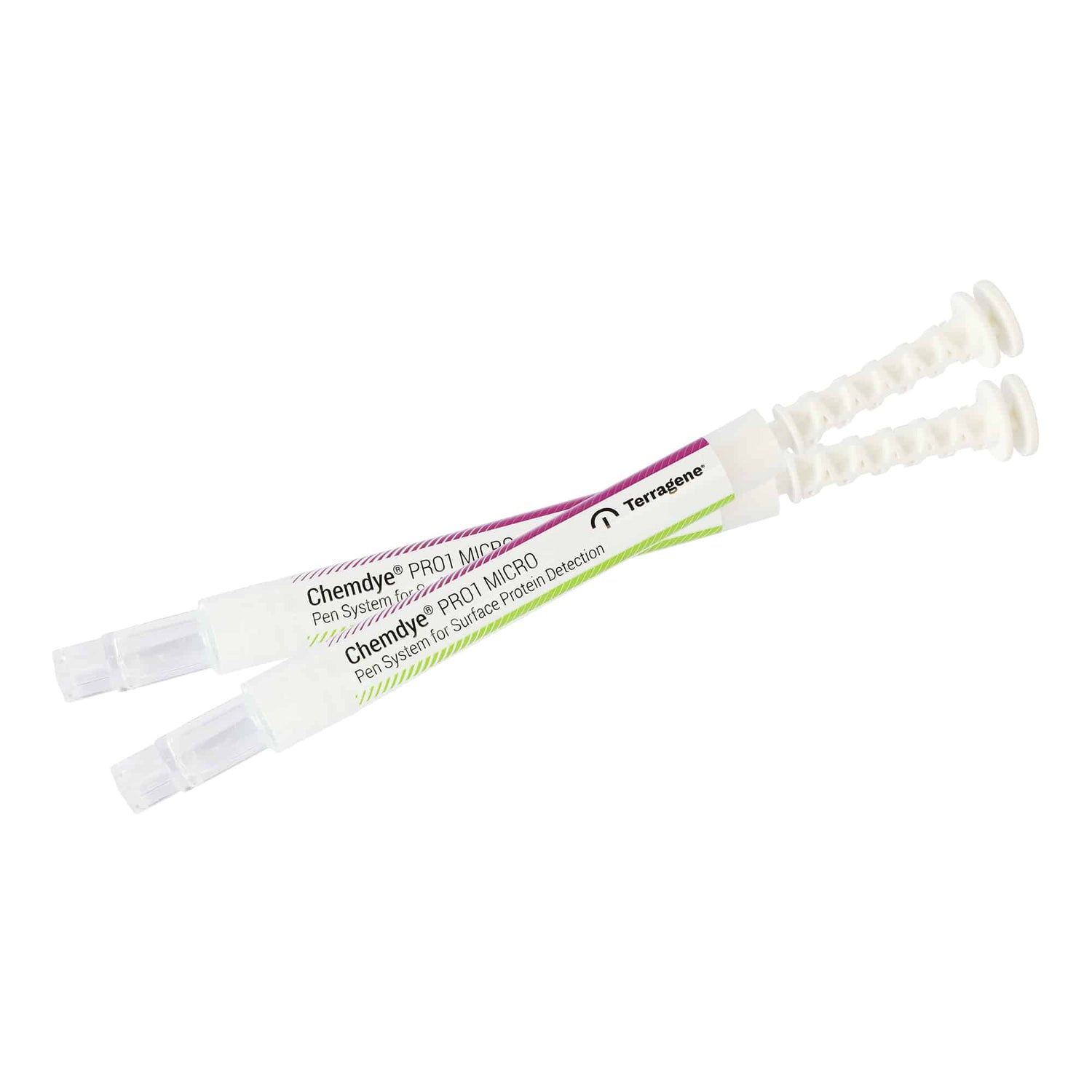

Proline Medical Hygiene Monitoring System - Surface Protein Pen System

The Chemdye PRO1 MICRO is a high-sensitivity protein detection system designed to identify residual protein on surfaces and in difficult-to-access areas following a cleaning process.

Each single-use device combines a reactive solution with a highly absorbent swab, allowing samples to be collected efficiently from a variety of surfaces. The system supports both qualitative visual analysis and quantitative analysis when used with compatible Bionova incubation and reading equipment.

With a sensitivity of 0.3 µg of BSA and a quantification limit of 1.0 µg of BSA, PRO1 MICRO is suitable for cleaning verification and hygiene monitoring in dental, healthcare and pharmaceutical environments.

Key Features

• Detects residual protein following cleaning processes
• Suitable for surfaces and difficult-to-access areas
• High-absorption swab supports efficient sample collection
• Combines the sampling swab and reactive solution in a convenient pen system
• Supports qualitative visual and quantitative analysis
• Sensitivity of 0.3 µg of BSA
• Limit of quantification of 1.0 µg of BSA
• Rapid incubation and result interpretation
• Suitable for dental, healthcare and pharmaceutical applications
• Available in packs of 20 or 100 tests

Product Brochure

Instructions for Use

Product Specifications

Brand: Chemdye
Product Code: PRO1 MICRO
Process: Hygiene monitoring
Detection Method: Protein residue detection
Sensitivity: 0.3 µg of BSA
Limit of Quantification: 1.0 µg of BSA
Pen Diameter: 12.4 mm
Pen Length: 161 mm
Swab Length: 111.9 mm
Incubation Temperature: 60 ± 2°C
Packaging: 20 or 100 tests
Standards: ISO 15883-1:2006, HTM 01-01:2016 and HTM 01-05:2013
Applications: Dental, healthcare and pharmaceutical

Result Analysis

Qualitative Analysis: Incubate for seven minutes at 60 ± 2°C using the Bionova IC10/20 incubator. Interpret the result visually using the reference guide supplied with the product.

Quantitative Analysis: Use a compatible Bionova IC10/20FR, IC10/20FRLCD or MiniPro auto-reader incubator.

• IC10/20FR or IC10/20FRLCD readout time: 7 minutes
• MiniPro readout time: 4 minutes

Always refer to the instructions for use for the applicable incubation and interpretation procedure.

Important Information

• Do not open the device until it is ready for use.
• Single-use only. Do not reuse.
• Do not touch the swab or the inside of the device.
• Wear gloves, a surgical mask and follow appropriate hygiene procedures.
• Do not freeze.
• High concentrations of alkaline detergents may produce false-negative results.
• Hydrogen peroxide-based disinfectants may produce a false-positive colour reaction.

Important: PRO1 MICRO is a protein residue detection system and is not a microbiological monitoring device. A satisfactory result does not confirm that a surface is sterile.
