Proline Medical Helix Process Challenge Device (PCD) Test Strips for Steam Sterilisation + 1 Device

The Chemdye KH2X15-3.5Y/P Helix Test Kit is a reusable Process Challenge Device designed to monitor steam sterilization cycles and verify the effective penetration of steam into hollow instruments and loads.

Designed for cycles operating at 134°C for 3.5 minutes, the system uses Type 2 chemical indicator strips that change from yellow to dark brown or black when the required sterilization conditions have been achieved.

The kit is suitable for dental and healthcare environments and supports informed load-release decisions following steam sterilization.

Product Brochure

Key Features

• Designed for steam sterilization processes

• Suitable for hollow-load penetration testing

• Operating conditions: 3.5 minutes at 134°C

• Reusable, durable plastic Helix-PCD device

• 1.5 m high-resistance plastic tube

• 2 mm internal tube diameter

• Type 2 self-adhesive chemical indicator strips

• Clear colour change from yellow to dark brown/black

• Supplied with 250 indicator strips

• Free from toxic heavy metals

• Complies with EN 867-5 and ISO 11140-1

How the Indicator Works

Each indicator strip contains four printed indicator bars.

When all four bars change completely to the final dark brown or black colour, the sterilization conditions have been achieved and the load may be released in accordance with your facility’s procedures.

If one or more bars remain yellow or do not fully reach the final colour, this may indicate insufficient steam penetration. The load should not be considered sterile or released.

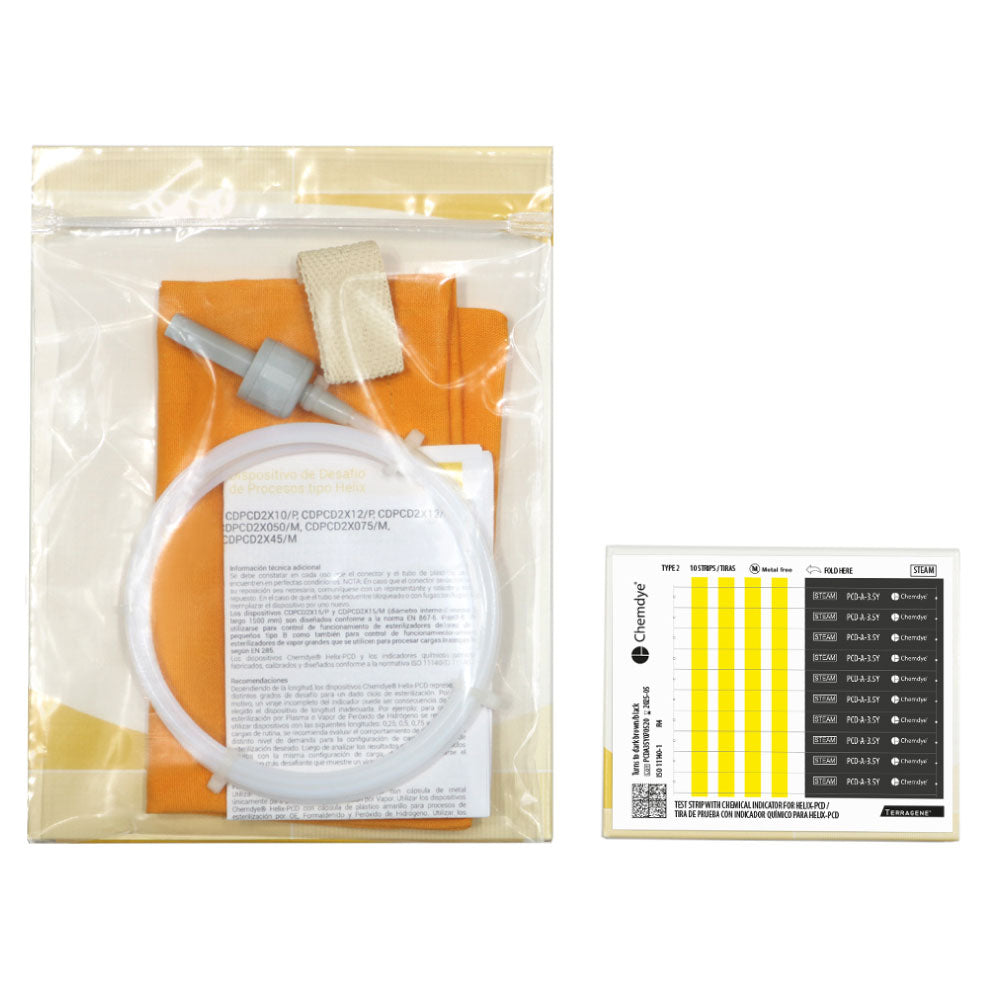

Kit Contents

• 1 reusable plastic Helix-PCD device

• 1 cotton storage bag

• 250 PCD-A-3.5Y chemical indicator strips

Indicator Strip Details

• Indicator type: Type 2 Chemical Indicator

• Strip size: 76 x 6 mm

• Format: 10 strips per sheet

• Sheet size: 80 x 98.5 mm

• Initial colour: Yellow

• Final colour: Dark brown/black

• Self-adhesive backing

Product Specifications

Brand: Chemdye
Product Code: KH2X15-3.5Y/P
Process: Steam sterilization
Cycle Conditions: 3.5 minutes at 134°C
Indicator Type: Type 2 Chemical Indicator
Tube Length: 1.5 m
Internal Tube Diameter: 2 mm
Applications: Dental and healthcare
Standards: EN 867-5, ISO 11140-1
Packaging: 1 plastic device, 1 cotton bag and 250 indicator strips
ANMAT Authorization: PM-1614-4
