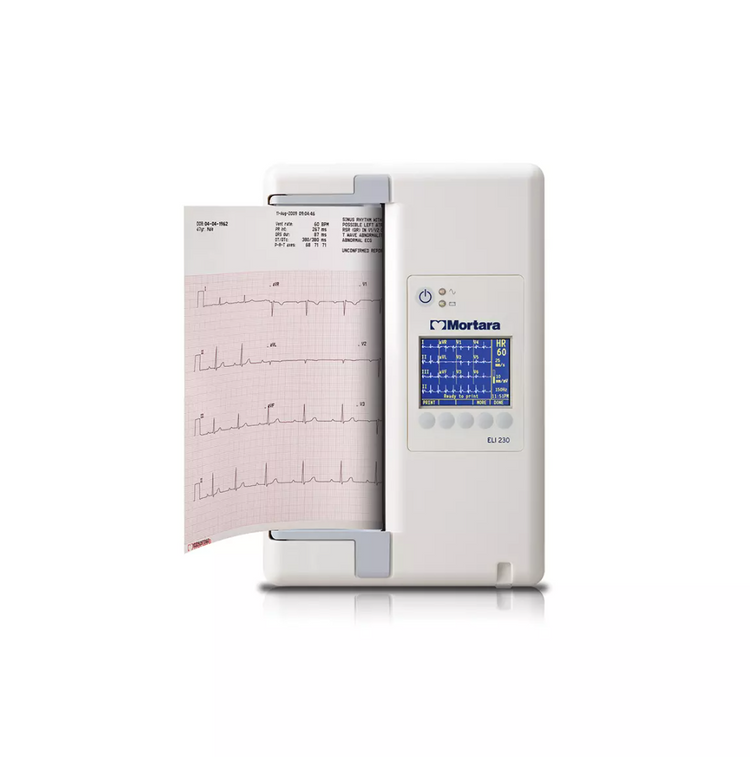

Hillrom Welch Allyn ELI 230 Resting Electrocardiograph with WAM Module

WELELI230-ABA-AAAAX

Each

$2,420.00
$2,420.00
$2,420.00
Add Accessories - 1 Recommended
View Close
Hillrom Welch Allyn Mortara ECG Thermal Paper Roll - Header Full Size 210mm x 21.3m Long
$21.04

The Hillrom Welch Allyn ELI 230 Resting Electrocardiograph with WAM Module is a compact and portable ECG device that offers accurate and reliable adult/pediatric interpretation. Its color display allows for real-time preview and post-acquisition review, and the VERITAS™ algorithm provides a silent second opinion for diagnostic interpretation. Get complete functionality and full-size printouts with this cost-effective solution.

Add Accessories - 1 Recommended
View Close
Hillrom Welch Allyn Mortara ECG Thermal Paper Roll - Header Full Size 210mm x 21.3m Long
$21.04

Feature

  • Convenient Patient Access: The WAM™ module is a compact and lightweight as traditional wired cables, providing clinicians with the flexibility to move freely while performing ECGs and cardiac stress tests
  • Simple ECG Acquisition: ECGs can be initiated directly from the WAM module or the electrocardiograph. With just a press of a button, the module allows for 12-lead ECG acquisition and rhythm, printing at the bedside with both visual and audible feedback
  • Ideal for Tight Spaces: No need to bring the electrocardiograph into the patient's room, perfect for critical care or isolation situation where space is limited
  • Secure to Point-to-Point Connection: The WAM module establishes a dedicated and secure communication link a single electrocardiograph or cardiac stress system, ensuring reliable data transmission
  • High quality diagnostic ECG: Featuring a high fidelity sampling rate of 40,000 samples per second per channel, the WAM module delivers diagnostic quality ECGs and enhances pacemaker detection by eliminating cable artifacts
  • Efficient Power Management: The battery operated WAM module can perform up to 250 resting ECGs under typical usage, with automatic power off for enhanced battery efficiency

Specification

  • Instrument Type: 12-Lead Wireless Acquisition Module for resting ECG
  • Input Channels: 12-Lead signal acquisition and transmission
  • ECG Leads Transmitted: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5 and V6
  • Module Transmission Protocol: Bidirectional and frequency hopping; beacon and response method links a single acquisition module to a single electrocardiograph or cardiac stress system
  • Frequency Range: 2400.96 MHz to 2482.56 MHz
  • Module and Receiver Distance: Approximately 10 feet (3 meters)
  • Lead set: RA, LA, RL, LL, V1, V2, V3, V4, V5 and V6 (R, L, N, F, C1, C2, C3, C4, C5 and C6) with detachable lead wires
  • Sampling Rate: 40,000 samples/second/channel acquisition; 1,000 samples/second/channel transmitted for analysis
  • Resolution: 1.875 microvolt LSB
  • User Interface: Three-button operation: ON/OFF, 12-lead ECG acquisition and rhythm strip acquisition
  • Defibrillator Protection: Complies with AAMI standards and IEC 60601-2-25
  • Special Functions: LED indication of power status, operating mode, lead fault and remaining battery charge
  • Device Classification: Type CF, battery operated
  • Weight: 6.7 oz. (190 g) with battery
  • Dimensions: 4.45 x 4.25 x 1.1” (11.3 x 10.8 x 2.79 cm)
  • Battery: 1 AA alkaline battery typically powers WAM module for acquisition of 250 resting ECGs
