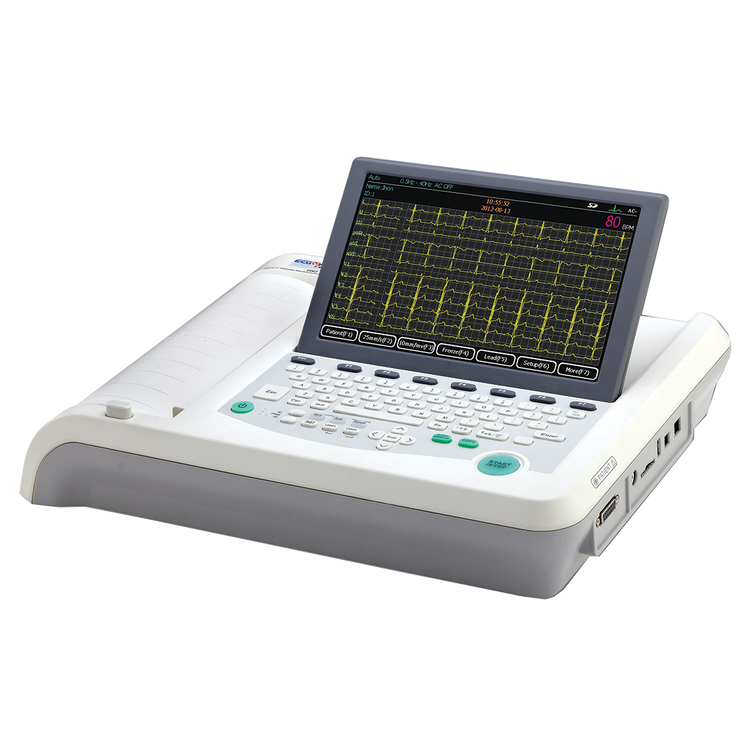

ECGMAC EM-1201 Interpretive Electrocardiograph (ECG)

EMEM1201

Each

$2,600.00
$2,709.81
$2,600.00
Add Accessories - 4 Recommended
View Close
Welch Allyn 715006 ECG Clip
$115.50
3M Red Dot 2330 ECG Tab Electrodes
$18.02
3M Red Dot 2239 Micropore ECG Electrodes
$20.97
View More Close

The 12 Channel EM-1201 Interpretive electrocardiograph features an easy to read foldable colour screen capable of displaying all 12 waveforms simultaneously and single button operation.



Add Accessories - 4 Recommended
View Close
Welch Allyn 715006 ECG Clip
$115.50
3M Red Dot 2330 ECG Tab Electrodes
$18.02
3M Red Dot 2239 Micropore ECG Electrodes
$20.97
View More Close

Feature

  • 12-channel resting desktop ECG
  • Simultaneous 12 leads ECG data acquisition and display
  • Easy to read foldable 10 inch / 25 cm colour screen
  • Full silicon alphanumeric QWERTY keypad
  • One-touch operation for fast ECGs
  • Built in A4 thermal printer z/fold or roll compatible
  • Internal SD card holds over 10,000 reports in XML/PDF/BMP/JPG/DICOM format
  • Built in lithium ion rechargeable battery supplies power for over 360 ECGs
  • Internal pacemaker detection
  • Extended printing once arrhythmia is detected
  • Network connectivity

Includes

  • 1 * Main ECG unit
  • 1 * Patient cable (AHA)
  • 1 * Power cord
  • 1 * User manual
  • 1 * Thermal paper roll
  • 10 * ECG Multifunction electrode adaptors
  • 1 * Pack of 50 disposable electrodes

Specification

  • Dimensions (H*W*D): 98mm * 435mm * 335mm
  • Weight: 4kg
  • Power Source: Mains supply with rechargeable Li-ion battery
  • Average Battery Life: Approx 360 ECGs
  • Frequency Response: 0.05Hz to 150Hz
  • Filters: AC Filter, DFT Filter, EMG Filter, LOWPASS Filter
  • Record Speed: 5mm/s, 6.25mm/s, 10mm/s, 25mm/s, 50mm/s
  • Sample Rate: 1000 sps/channel (normal), 10,000 sps/channel (pacemaker detected)
